RHESSI Visibility Imaging

Create images from RHESSI visibility data

import astropy.units as apu
import matplotlib.pyplot as plt
import numpy as np
from astropy.io import fits

from xrayvision.clean import vis_clean
from xrayvision.imaging import vis_psf_map, vis_to_map
from xrayvision.mem import mem, resistant_mean
from xrayvision.visibility import Visibilities, VisMeta

We will use astropy.io.fits to download and open the RHESSI visibility fits file

hdul = fits.open(
    "https://hesperia.gsfc.nasa.gov/rhessi_extras/visibility_fits_v2/"
    "2002/02/21/hsi_vis_20020221_2357_0054_46tx3e.fits"
)

No lets extract the visibility data the first thing we will do is filter the visibilities by time. We will extract the 3rd integration time range.

times = np.unique(hdul[-1].data["TRANGE"], axis=0)
time_index, _ = np.where(hdul[-1].data["TRANGE"] == times[6])
vis_data = hdul[3].data[time_index]

Next lets filter by energy range in this case 12 - 25 keV

energy_index, _ = np.where(vis_data["ERANGE"] == [12.0, 25.0])
vis_data = vis_data[energy_index]

Now lets filter by ISC or detector to remove possibly bad data in this case need to remove ISC 0 and 1.

vis_data = vis_data[vis_data["isc"] > 1]
vis_data = vis_data[vis_data["obsvis"] != 0 + 0j]

Now we can create the visibility object from the filtered visibilities.

meta = VisMeta({"vis_labels": vis_data["isc"]})

vunit = apu.Unit("photon/(cm**2 s)")
vis = Visibilities(
    visibilities=vis_data["obsvis"] * vunit,
    u=vis_data["u"] / apu.arcsec,
    v=vis_data["v"] / apu.arcsec,
    phase_center=vis_data["xyoffset"][0] * apu.arcsec,
    meta=meta,
    amplitude_uncertainty=vis_data["sigamp"] * vunit,
)

Lets have a look at the point spread function (PSF) or dirty beam

psf_map = vis_psf_map(vis, shape=(101, 101) * apu.pixel, pixel_size=1.5 * apu.arcsec / apu.pixel, scheme="uniform")

We can now make an image using the back projection algorithm essentially and inverse Fourier transform of the visibilities.

backproj_map = vis_to_map(vis, shape=[101, 101] * apu.pixel, pixel_size=1.5 * apu.arcsec / apu.pix)

Back projection contain many artifact due to the incomplete sampling of the u-v plane as a result various algorithms have been developed to remove or deconvolve this effect. CLEAN is one of the oldest and simplest, a CLEAN image can be made.

# vis_data_59 = vis_data[vis_data['isc'] > 3]
#
# vis_59 = Visibility(vis=vis_data_59['obsvis']*apu.Unit('ph/cm*s'), u=vis_data_59['u']/apu.arcsec,
#                     v=vis_data_59['v']/apu.arcsec, offset=vis_data_59['xyoffset'][0]*apu.arcsec)

clean_map, model_map, residual_map = vis_clean(
    vis,
    shape=[101, 101] * apu.pixel,
    pixel_size=[1.5, 1.5] * apu.arcsec / apu.pix,
    clean_beam_width=10 * apu.arcsec,
    niter=100,
)

Max iterations reached

MEM

# Compute percent_lambda
# Loop through ISCs starting with 6-9, but if we don't have at least 2 vis, lower isc_min to include next one down, etc.
isc_min = 6
nbig = 0

while isc_min >= 0 and nbig < 2:
    ibig = np.argwhere(vis.meta.vis_labels >= isc_min)
    nbig = len(ibig)
    isc_min = isc_min - 1

# If still don't have at least 2 vis, return -1, otherwise calculate mean (but reject points > sigma away from mean)
if nbig < 2:
    snr_value = -1
else:
    snr_value, _ = resistant_mean((np.abs(vis.visibilities[ibig]) / vis.amplitude_uncertainty[ibig]).flatten(), 3)

percent_lambda = 11.0 / (snr_value**2 + 383.0)

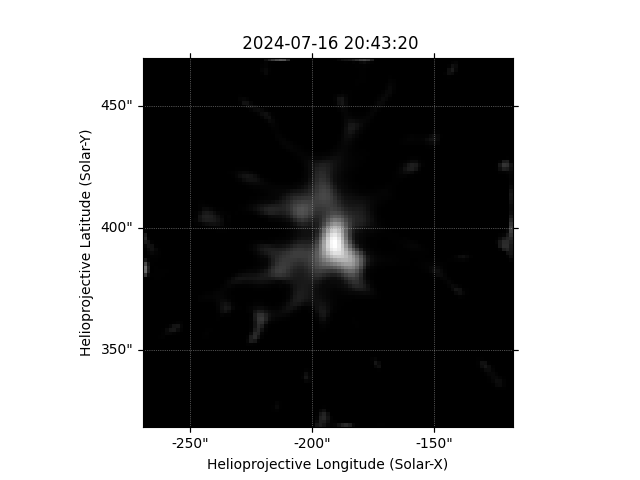

mem_map = mem(vis, shape=[101, 101] * apu.pixel, pixel_size=[1.5, 1.5] * apu.arcsec / apu.pix)
mem_map.plot()

/home/docs/checkouts/readthedocs.org/user_builds/xrayvision/envs/v0.2.0/lib/python3.9/site-packages/astropy/units/quantity.py:1331: ComplexWarning: Casting complex values to real discards the imaginary part
  self.view(np.ndarray).__setitem__(i, self._to_own_unit(value))
/home/docs/checkouts/readthedocs.org/user_builds/xrayvision/envs/v0.2.0/lib/python3.9/site-packages/sunpy/map/mapbase.py:892: SunpyMetadataWarning: Missing metadata for observation time, setting observation time to current time. Set the 'DATE-AVG' FITS keyword to prevent this warning.
  warn_metadata("Missing metadata for observation time, "
INFO: Missing metadata for solar radius: assuming the standard radius of the photosphere. [sunpy.map.mapbase]
/home/docs/checkouts/readthedocs.org/user_builds/xrayvision/envs/v0.2.0/lib/python3.9/site-packages/sunpy/map/mapbase.py:633: SunpyMetadataWarning: Missing metadata for observer: assuming Earth-based observer.
For frame 'heliographic_stonyhurst' the following metadata is missing: dsun_obs,hgln_obs,hglt_obs
For frame 'heliographic_carrington' the following metadata is missing: dsun_obs,crln_obs,crlt_obs

  obs_coord = self.observer_coordinate

<matplotlib.image.AxesImage object at 0x7fb89716f040>

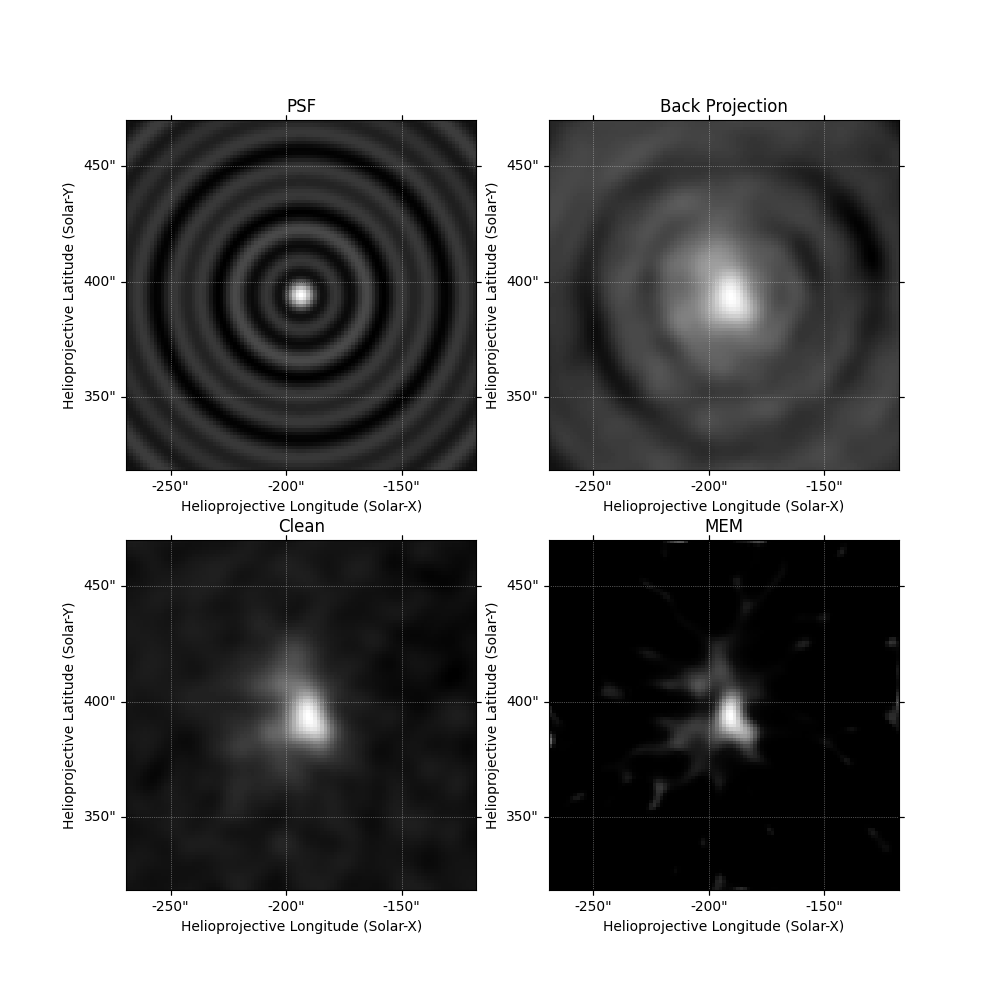

Comparison

fig = plt.figure(figsize=(10, 10))
fig.add_subplot(221, projection=psf_map)
fig.add_subplot(222, projection=backproj_map)
fig.add_subplot(223, projection=clean_map)
fig.add_subplot(224, projection=mem_map)
axs = fig.get_axes()
psf_map.plot(axes=axs[0])
axs[0].set_title("PSF")
backproj_map.plot(axes=axs[1])
axs[1].set_title("Back Projection")
clean_map.plot(axes=axs[2])
axs[2].set_title("Clean")
mem_map.plot(axes=axs[3])
axs[3].set_title("MEM")
plt.show()
